Company Profile
This company is located the emerging port city Jiangsu Zhangjiagang, Is located township of the hard ware which is well-known in the Chinese and foreignDaXin town,North pillow Yangtze River, South meets Soviet, the tin,often,the amphibious transprotaation is extremely convenient. The company was founded in the 1990s, is a professional hardware supplier, the company has always followed the principle of quality first, user first, with excellent products, low prices to serve our customers.
Why Choose Us
Our factory
The company was founded in the 1990s, is a professional hardware supplie. The company has a warehouse of 10000 square meters.
Production equipment
Drill Press,Punch,Milling machine, Belt polisher,CNC milling machine,Laser marking machine,Automatic handle machine, DIP machine,High frequency.
Product application
All kinds of hand tools, such as pliers, scissors, etc.A hand tool for fixing work pieces or twisting, bending, or cutting wire.
Our service
Promise that the products sold meet the material requirements confirmed in advance with the buyer, otherwise the buyer will be compensated. We promise to deliver the goods within the agreed delivery time. If the goods are not delivered on time, the buyer will receive compensation proportional to the actual amount of the delivered goods.

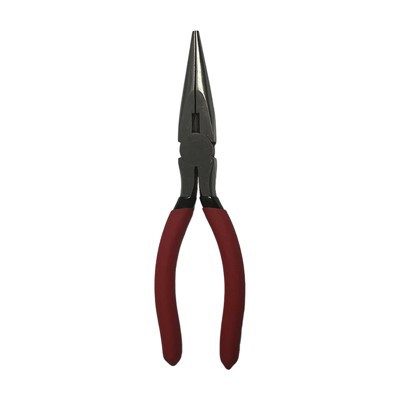

American Type Long Nose Pliers
Intended for cutting and holding, the long-nose pliers (aka needle-nose pliers) makes it easy to bend, re-position, or snip wire particularly useful tool for jewelry makers and electricians.
Carbon Steel material, heat treatment of the whole body, and the hardness reaches HRC 42-48. Anti-slip designed on the head, not easy to slip.
Using high hardness steel material, the carpenter plier is strong and tough. Can be used for cutting iron wire, winding steel wire, pulling nails, clamping screws, etc.
Tower Pincers is a professional pliers tool crafted from high-quality carbon steel for durability. The opening width of the chuck of Tower Pincers is also very large, which can easily clamp large-sized materials, and has great convenience in operation.
Water Pump Pliers are made of Carbon Steel material, heat treated as a whole, and the hardness after heat treatment is 42-48 degrees. The surface of this water pump plier is plated with bright chrome, which is not easy to get rust.
Slip Joint Pliers is 45# carbon steel, it is strong and heat treated, and the hardness is up to 42-48 degrees. The surface of the pliers is treated with bright chrome, which has good rust resistance.
Wire Stripping Pliersare professional tool for electricians and engineers. Fully adjustable for fast and easy cable stripping with rubbized anti-slip coating.
The clamp body is forged from high carbon steel, which is sturdy and durable. High temperature quenching treatment of the blade edge, the blade edge fits tightly, is strong and sharp, not easy to break, and has strong shear force.
High carbon steel forging, sturdy and durable. Surface polishing, rust prevention and corrosion resistance. After anti-corrosion testing, the clamp body is not easy to rust.
What Is Circlip Pliers
The circlip pliers is a versatile tool designed specifically for the installation and removal of circlips. Circlips are used to secure components to shafts and bores and are commonly found in a variety of machinery and equipment. The circlip pliers is a must-have tool for any mechanic or technician, allowing for precise and efficient installation and removal of circlips.
Precise and efficient installation
First and foremost, the pliers are designed to provide precise and efficient installation and removal of circlips. This is especially important in industries where precision is essential, such as automotive, aerospace, and medical equipment manufacturing.
Reduce the risk of injury to the user
The circlip pliers is also designed to reduce the risk of injury to the user. Traditional circlip installation and removal methods often require the use of hand tools, which can be dangerous if not used properly. The circlip pliers is designed to provide a safer alternative, reducing the risk of injury and improving overall workplace safety.
Ease of use
Another key advantage of the circlip pliers is its ease of use. The pliers require minimal training and can be used by anyone, regardless of experience level. This makes them an ideal addition to any toolkit, and a must-have for any mechanic or technician.
Types of Circlip Pliers
External circlip pliers
External circlips are made to fit around the outside of a shaft or dowel, usually seated in a groove. Once in place, they exert their spring pressure inwards towards the dowel as a means of providing grip. External c-clips, therefore, need to be opened up for installation, using external circlip pliers. This allows the ring to expand slightly and fit more easily over the dowel.
With the tips of the external circlip pliers inserted into the holes in the c-clip, squeezing the handles results in the tips of the external circlip pliers opening up. This stretches the snap ring out slightly, allowing it to be slotted over a shaft.
Internal circlip pliers
Internal circlips are designed to be fitted inside a hollow, cylindrical housing or bore. The spring action pushes outward against the sides, so it's a radiating pressure that holds the ring in place.
Internal circlip pliers work the opposite way around to external versions. When the tips of internal circlip pliers are inserted into the holes on the snap ring, squeezing the handle results in the plier tips closing together. Once the c-clip is in position, the handles can be released, and the ring returns to its maximum diameter.
Long nose circlip pliers
Long nose circlip pliers are a specialist tool designed for use with longer dowels or bores. They're also handy for inserting and removing c-clips in harder-to-reach places.
These pliers feature noticeably extended tips for easier operation. Long nose internal circlip pliers tend to be more widely sold than external versions. This is because it's generally more challenging to insert a snap ring inside a deep bore than around the outside of one.
You can buy long nose circlip pliers that come with either straight or bent tips. The best choice will depend on the types of installations or access conditions you will be working with most often.
Heavy-duty circlip pliers
Heavy-duty circlip pliers are built for use in more demanding situations, typically when needing to manipulate, install or remove much bigger or thicker retaining rings.
Industrial or heavy-duty snap ring pliers tend to be used for larger machinery assembly and repairs. They're usually manufactured to a high grade from toughened materials, such as heat-treated steel, and may have galvanised tips for increased hardness.
Heavy-duty c-clip pliers are also more likely to feature additional safety mechanisms and benefits. A common example might be a ratchet locking mechanism, to enable greater control and secure grip against higher-gauge snap ring tensions.
Circlip pliers (also known as snap ring pliers) are used to remove and insert internal or external circlips. But how do you use them correctly?
Step 1
Insert the circlip plier tips into the holes of the circlips you are looking to install.
Step 2
Once the pliers are in place, close the handles to reduce the size of the circlips. Do not over squeeze the handles as this can permanently damage the circlips. The circlips only needs to be reduced in size enough to fit the bore.
Step 3
Once the circlips have been reduced to the necessary size, hold the handles in place to maintain this size and then insert the circlips into the groove of the bore making sure that it clicks correctly into place.
What's the Difference Between Straight Jaw and 90-Degree Bent Jaw Circlip Pliers?
The main difference between straight jaw circlip pliers and bent (angled) jaw is the orientation of their jaws. Here's a breakdown of the differences:
Straight Jaw Circlip Pliers: That are aligned in a straight line with the handles. The jaws are parallel to each other and do not have any angle or bend. These pliers provide a direct and straightforward approach to working with circlips. They are typically used when there is enough space and easy access to the circlip, allowing for a straight insertion or removal.
Bent (Angled) Jaw Circlip Pliers: Have jaws that are bent at a 90-degree angle or at another specific angle relative to the handles. The angled jaws allow for better reach and access to circlips in confined spaces or areas where straight access is limited. The angle of the jaws enables the pliers to reach around obstacles or work in tight spots where straight jaw pliers may not fit. They provide more versatility in terms of accessing circlips at different angles or in hard-to-reach locations.
The choice between straight jaw and bent jaw circlip pliers depends on the specific application and the accessibility of the circlip. Straight jaw pliers are suitable for situations where there is ample space and a direct approach is possible. Bent jaw pliers are preferred when there are obstructions or limited access, requiring a more flexible and angled approach.
How to Choose Circlip Pliers
Type of retaining ring
Different types of retaining ring will require different circlip pliers the first thing you should consider is the type of circlip or retaining ring you are working with, as different tips and types of pliers are available for different types of circlip. For example, standard circlip pliers have tips designed to fit the grip holes of circlips while retaining ring pliers may have textured tips that hold the flat ends of constant section retaining rings.
Size
Each set of circlip pliers will have a minimum and maximum diameter of circlip they can work with, or a range of distances the tips can open and close to, depending on the size of the tool. These specifications are important, and circlip pliers should only be used with retaining rings of an appropriate size. Special circlip tools are available for use with extra large circlips, which are over 400mm (15.7 inch) in diameter.
Also check the diameter of the tips of circlip pliers. You should use the largest tips that fit the holes of the circlip; this helps prevent the circlip from slipping off.
If you need to work with circlips of different types and sizes, you may need to buy a set containing a variety of circlip pliers, or you might want to have circlip pliers with replaceable heads or tips.
Position
You will also need to consider the position of the circlip, as differently angled tips will allow you to reach circlips in different places.
Circlips that are positioned inside mechanical parts, such as hydraulic master cylinders on motorcycles, may need circlip pliers which are longer overall or have longer tips.
Strength
Heavy duty circlips can be used for heavy duty retaining rings circlips used in machines which exert great axial forces, such as automobile engines, are usually stronger and will therefore require heavy duty circlip pliers.
These circlips provide the strength required to withstand high stresses, but this can make them more difficult to remove or install as they can't be expanded or compressed as easily. To avoid straining a pair of circlip pliers with these stronger circlips, you may want to consider heavy duty circlip pliers instead.
Environment
The environment you use tools in may affect which tools you should choose. Pliers should never normally be used with very hot components or generally be exposed to increased temperatures as this can weaken them.
If you need to use circlip pliers around live electricity you will need to ensure that you have a pair with insulated handles; these protect against electric shocks where normal plastic handles will not.
Amount of use
You might need circlip pliers with different heads for different jobs consider how often you will use the circlip pliers and if you will be using them with many different circlips.
If you work with various sizes of circlip, but you won't need to use your circlip pliers often, you may want to consider pliers with interchangeable heads or tips. These will not be as strong as fixed head circlip pliers, but will be cheaper than buying individual pliers for use with different circlips.
Circlip Pliers Maintenance and Care
Cleaning
If used on motor parts, it's likely that your circlip pliers will get oil and dirt on them during use. The pliers can be cleaned with rubbing alcohol, or a similar solvent. You should make sure that the pliers are clean and dry once you have used them. Moisture on metal parts is likely to cause rust, so make sure they're dry before storing.
Lubricating
Most tools with moving parts occasionally need lubricating to keep these parts moving smoothly. A multi-purpose oil can be used on the joint of the pliers, where the metal pivots. Occasional oiling should also help avoid corrosion.
Correct usage
To keep the pliers working effectively, it's important to use them correctly. Each pair of pliers will have a specified minimum and maximum diameter circlip they can be used with, and you should only use them with circlips in this range.
Pliers should not be strained as this is likely to damage them.
The handles should never be extended for greater leverage. If you do require more leverage, you should use a larger pair of pliers.
No pliers should be used as a hammer, as this is likely to cause damage.
Pliers should not be exposed to high temperatures as this may weaken the metal, unless they are made of high-quality chrome nickel steel.
Storage
Circlip pliers should be stored in an appropriate place, where they cannot be damaged and will be kept dry.
Our factory
This company is located the emerging port city Jiangsu Zhangjiagang, Is located township of the hard ware which is well-known in the Chinese and foreignDaXin town,North pillow Yangtze River, South meets Soviet, the tin,often,the amphibious transprotaation is extremely convenient. The company was founded in the 1990s, is a professional hardware supplier, the company has always followed the principle of quality first, user first, with excellent products, low prices to serve our customers. After years of development, the company's growing scale, professional production equipment continues to improve, improve product quality, style constantly updated, strictly in accordance with the standard production, to ensure product quality. One-to-one service, quality and quantity delivery on schedule. Promise that the products sold meet the material requirements confirmed in advance with the buyer, otherwise the buyer will be compensated.
FAQ
